100m Single Cage Construction Hoist , Steel Galvanized Material

    Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers

    Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers
    • Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers
    • Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers
    • Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers
    • Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers
    • Buy cheap 100m Single Cage Construction Hoist , Steel Galvanized Material from wholesalers

    100m Single Cage Construction Hoist , Steel Galvanized Material

    Ask Lasest Price
    Brand Name : Ketong
    Model Number : SC series
    Certification : CE, GOST, ISO9001:2008
    Price : $21800/set
    Payment Terms : L/C, T/T
    Supply Ability : 100SETS/MONTH
    Delivery Time : 10-30 DAYS
    • Product Details
    • Company Profile

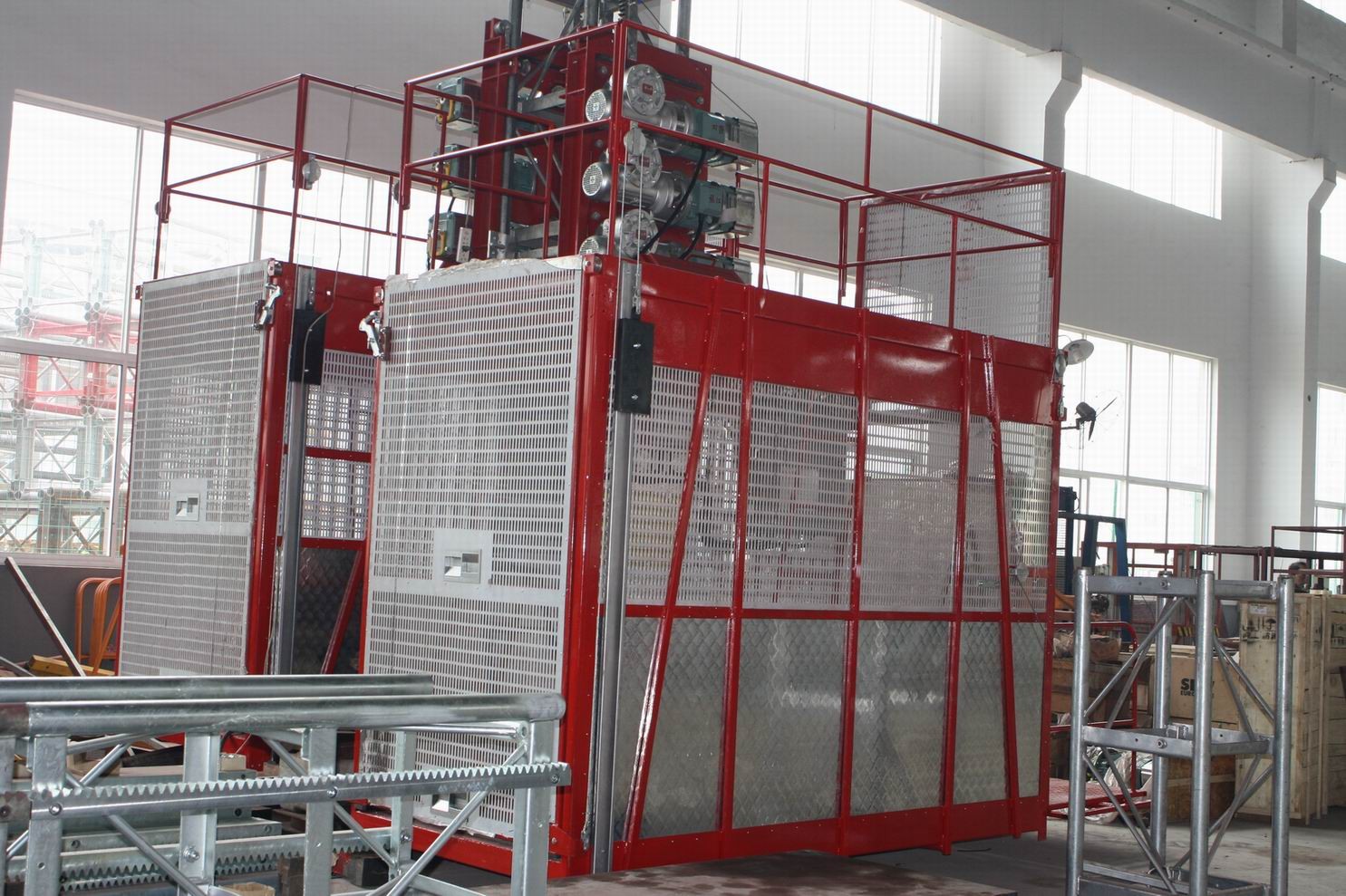

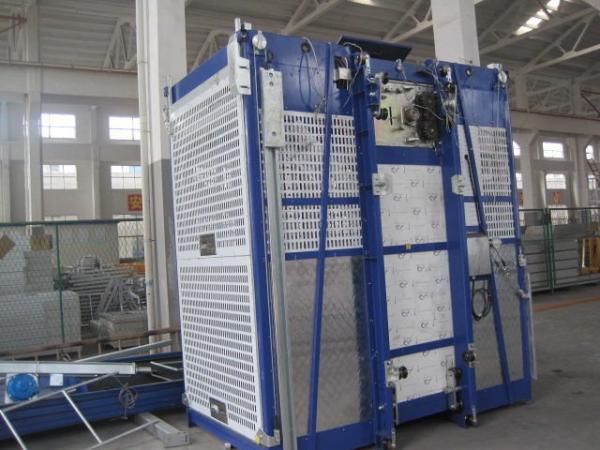

    100m Single Cage Construction Hoist , Steel Galvanized Material

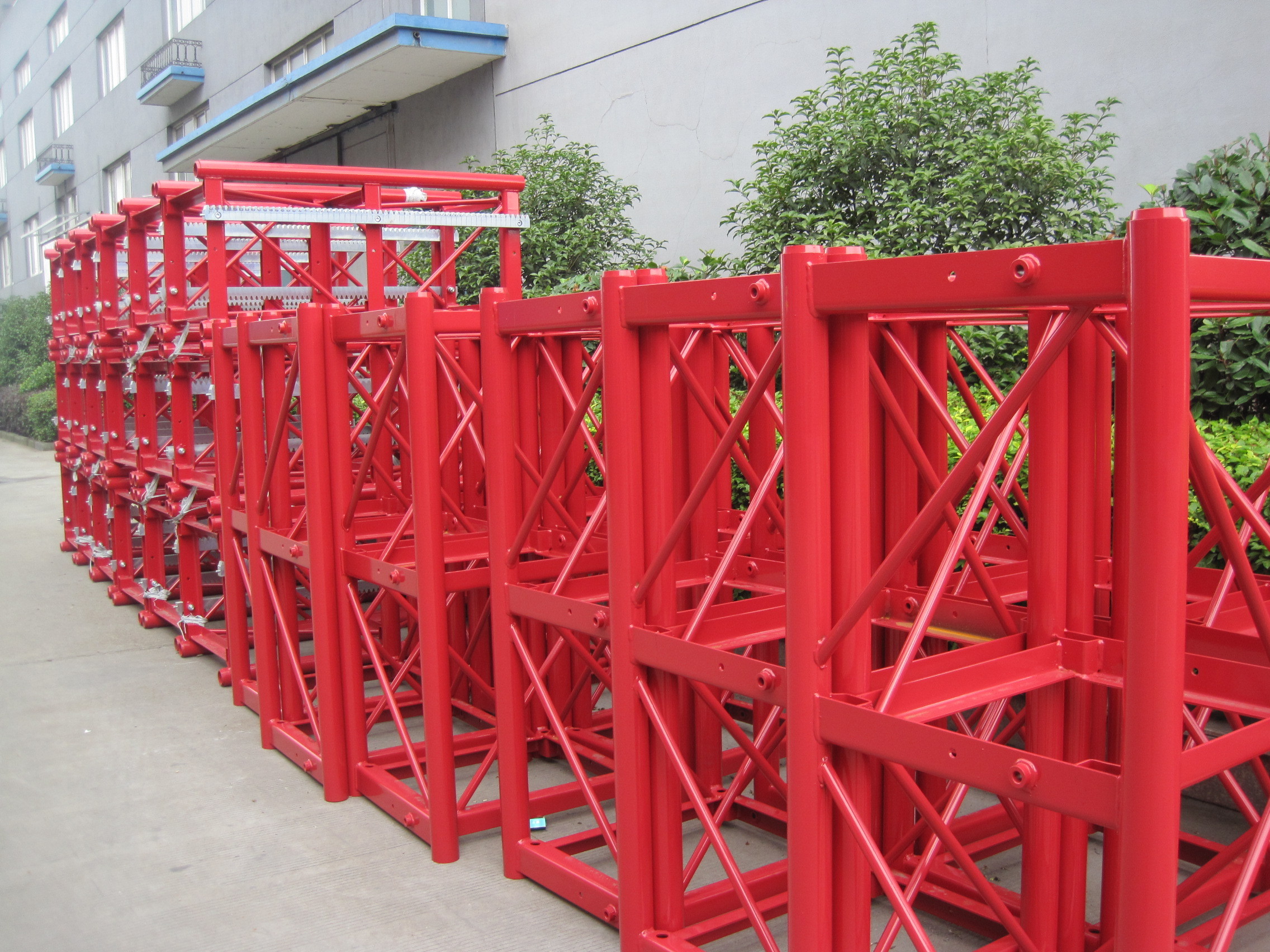

    Our building hoist payload capacity is as much as 8000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 450m, beside the normal type, our company has also designed and manufactured specialized hoists for construction of special building, such as curve, slope, twin mast, large tonnage and small size industrial building hoist and so on, We put the quality of products the first place all the time. We import reliable electric components from Europe. The steel structure is semi-automatically, gas protected welding shaped. The mast section can be steel painting or dipping zinc. At the mean time, the cage size can be designed according to customers need.

    We have normal building hoist, frequency conversion building hoist, small size hoist, curve building hoist, twin mast building hoist, and so on.
    1.Speed: from 36m/min to 96m/min
    2.Cage: one cage or twin cage
    3.Rated load. 1000kg to 8000kg
    4.Lifting height: 30m to 450m
    5.Size of cage: according to customers need

    Model(single and double cage)

    Capacity(kgs)

    Lifting speed(m/min)

    Motor power(kw)

    SC100TD

    1000

    36

    2x11

    SC200TD

    2000

    36

    3x11

    SC270TD

    2700

    36

    3x15

    SC320TD

    3200

    36

    3x18.5

    SC100/100TD

    2x1000

    36

    2x2x11

    SC200/200TD

    2x2000

    36

    2x3x11

    SC270/270TD

    2x2700

    36

    2x3x15

    SC320/320TD

    2x3200

    36

    2x3x18.5

    SC100GZ

    1000

    0-63

    2x15

    SC200GZ

    2000

    0-63

    3x18.5

    SC270GZ

    2700

    0-63

    3x22

    SC200/200GZ

    2x2000

    0-63

    2x3x15

    SC270/270GZ

    2x2700

    0-63

    2x3x18.5

    SC320/320GZ

    2x3200

    0-63

    2x3x22

    SC100/100G

    2x1000

    0-96

    2x2x22

    SC200/200G

    2x2000

    0-96

    2x2x22

    SC270/270G

    2x2700

    0-96

    2x2x22


    6. lifting speed: up to 96m/min100m Single Cage Construction Hoist , Steel Galvanized Material100m Single Cage Construction Hoist , Steel Galvanized Material
