Customized Construction Hoist Elevator Smoothly Starting And
Stopping
SC100, SC200, SC200/200 building hoist:
1). Cage load capacity: 2, 000kg
2). Lifting speed: 36m/min, 0 - 63m/min, 0 - 96m/min
3). Mast section: Painted or hot dipped zinc
4). Cage: Single cage or twin cage
5). Recommended cage inner dimensions (L x W x H): 2.5 x1.3 x 2.5m,
3.0 x 1.3 x 2.5m, 3.2 x 1.5 x 2.5m, 3.6 x 1.5 x 2.5m, 3.8 x 1.5 x
2.5m, 4.0 x 1.5 x 2.5m, 4.2 x 1.5 x 2.5m, according to requirements
of customers
6). Motor and reducing device: Made in China, or uses according to
requirements
7). Counterweight: With counterweight or without counterweight
8). Color of cage: Yellow, red, blue
9). Cage load capacity: 1, 000kg, 1, 200kg, 2, 000kg, 2, 700kg or
3, 200kg
10) including VFD or without VFD.
Ketong Building hoist superiority :
1. Smoothly starting and stopping without surging or jarring the
elevator car .
2. The lifing speed can be easily controlled and is infinitely
variable
3. The elevator starting current is lower than rated current.
4.By using the frequency conversion device greatly reduces
mechanical wear and tear oil the elevator and its components
5. The frequency conversion drive is more emcient and uses less
power .
We are a special supplier of building hoists and working platform
in China. Our building hoist has been widely exported all over the
world with a good reputation. The payload capacity is as much as
10, 000kg. Lifting speed can reach up to 96m/min, and the erection
height reaches up to 450m. Our products have been widely used for
transportation for both men and cargo in general buildings,
electric power plants, mining wells, oil fields and chemical
industries.

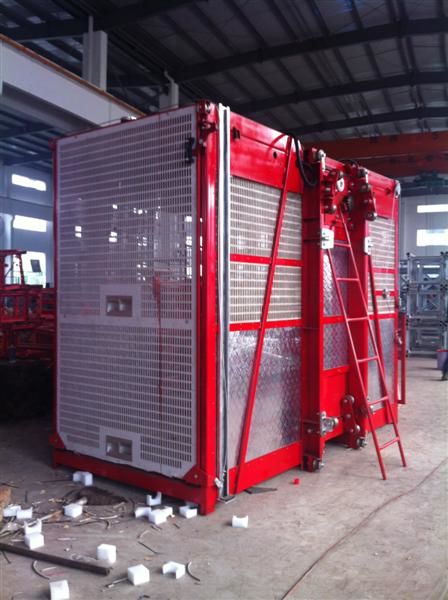

This pic is the cage of building hoist :
