    Safety Suspended Access Platforms For Building Maintenance With Steel Rope

    Ask Lasest Price
    Brand Name : KETONG
    Model Number : ZLP630
    Certification : ISO,GOST-R,CE
    Payment Terms : L/C, T/T
    Delivery Time : 10-30 DAYS
    • Product Details
    • Company Profile

    Safety Suspended Access Platforms For Building Maintenance With Steel Rope

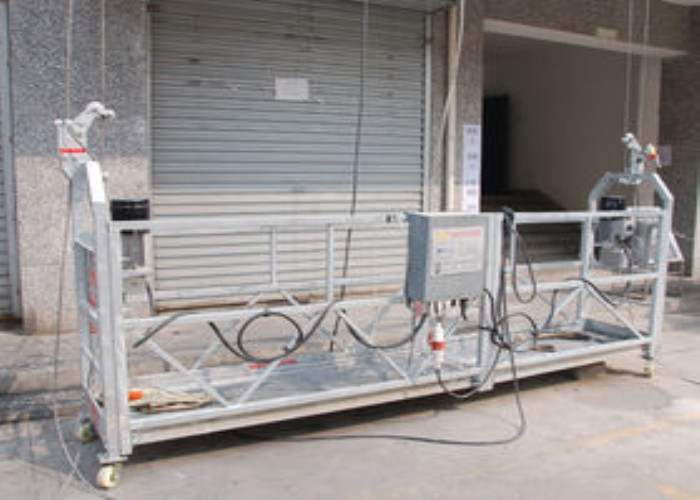

    ZLP630 Suspended Working Platform for Building Maintenance with Steel Rope

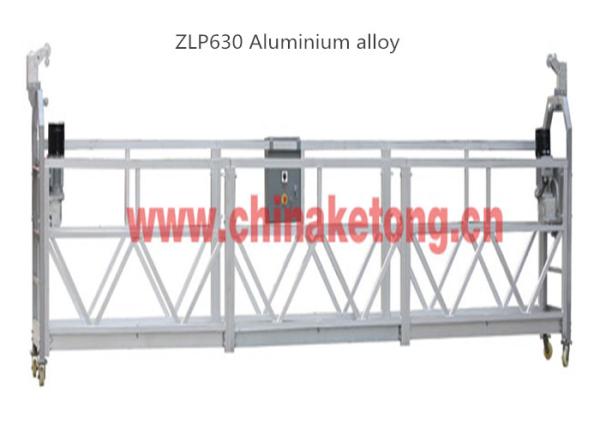

    Aluminium alloy , hot dip galvanizing or spray paint


    1. Suspension Mechanism and Counterweight

    The Height of the platform can be adjusted within 1150-1800mm with arm which can be stretched out and drawn back , it can be widely used parapet and complicated building in different height , and we can also supply customized platform to meet different requirement from the customers.


    Safety Suspended Access Platforms For Building Maintenance With Steel Rope


    2. The Technical Parameters of Main Parts


    Rated stretch of the front beam1500×1800mm
    Rated suspending load8KN×2
    The distance between suspending beam and ground1200mm
    The max distance between front support and the rear one4600mm

    3. ZLP630 Main Technical Data


    ModelZLP630
    Rated Load630KG
    Lifting Speed9.6m/min+0.5
    L*W*H(2000×3)× 690×1180mm
    Length of Platform1m—-6m can join together freely
    Standard Length of Platform6m(2m×3)
    Motor Power2×1.5kw
    Brake Torque15Nm
    Steel Rope Angle Adjusing Range3.-8.
    Distance Between Two Steel Rope<=100mm
    Rated Stretch of Front Beam1500mm
    Counterweight25kg×36pcs
    Diammeter of Steel Rope8.3mm
    Standard Lifting Height100m
    Motor Rotation Speed1420r/min
    Voltage380V
    Frequency50HZ

    Our suspended working platform can be widely used parapet and complicated building in different height.

    And we can also supply customized platform to meet different requirements from customers.

    Safety Suspended Access Platforms For Building Maintenance With Steel RopeSafety Suspended Access Platforms For Building Maintenance With Steel RopeSafety Suspended Access Platforms For Building Maintenance With Steel Rope
