    100M 90 Degree Suspended Working Platform With LST30 Safety Lock

    Ask Lasest Price
    Brand Name : Ketong
    Certification : ISO,GOST-R,CE, EAC
    Model Number : Customized
    Price : USD
    Supply Ability : 300 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

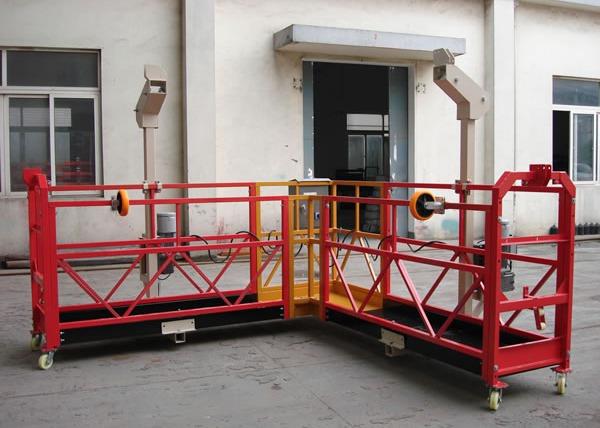

    100M 90 Degree Suspended Working Platform With LST30 Safety Lock

    Customized 90o Suspended Working Platform for chimney wall painting

    It can be adjusted 90o, color: red, yellow, blue, or customized


    KETONG Suspended working platform more than 8 years , more than 90% products export to all over world for 7 years , we already have agents in following countries: Dubai UAE , Russia , Vietnam, India. some other place we can discussing now . We have a complete after-sales service system to ensure the machines keep working well , you can find easy of our working team even just 1 set platform in that market. So please feel free to cooperate with us.


    Data of working platform

    ModelZLP630ZLP630ZLP630ZLP630ZLP630ZLP800ZLP1000
    Height (m)100100100100100100100
    Rated Load(kgs)6306306306306308001000
    Length of platform123567.57.5/10
    Safty lock typeLST30LST30LST30

    LST30

    LST30LST30LST30
    Hoist modelLTD6.3LTD6.3LTD6.3LTD6.3LTD6.3LTD6.3LTD6.3
    Volume (m3)1.92.12.32.82.93.23.6,4.0
    20 container (sets)201612101098
    Counter weight25*16 PCs25*16 PCs25*24 PCs25*32 PCs25*36 PCs25*40 PCs25*44 PCs

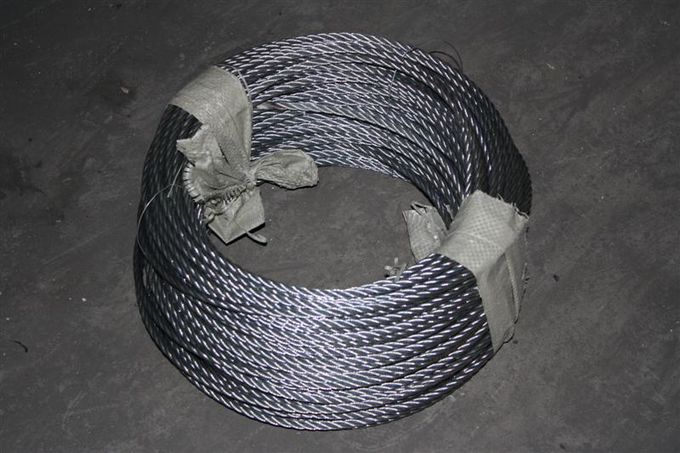

    Dia. of steel rope(min)8.38.38.38.38.38.69.1
    Voltage (V)380380380380380380380
    Weight (kg) (Aluminum alloy)1140117014001650175019302250
    Weight (kg) (Steel)1170122015001740189021002560/2670
    Weight (kg) (Galvanized steel)1170122015001740189021002560/2670

    Ketong Suspended working platform has many models for your choosing or customized for different building request , we have clearly video and instruction book to help you install and use smoothly , We also have a huge team of after-sales service to keep our machines working well always , we are developing agents all over world to protect our brand reputation and local sellers price , we have very good rules to you if you would like to be our agent , such as we can come to your local fair , have meeting with your buyers as a professional factory , our engineer can come to you to teach your workers to know our platform deeply , strict contract to protect agents in that area ... Welcome to discuss.


    The main Part:
    1. Suspension Mechanism and Counterweight
    The Height of the platform can be adjusted within 1150-1800mm with arm which can be stretched out and drawn back , it can be widely used parapet and complicated building in different height , and we can also supply customized platform to meet different requirement from the customers
    2. Working Platform
    we have different capacity platform for different request , the Main capacity is : 250kgs , 500kgs, 630kgs, 800kgs
    3. Hoist Motor

    Now we have three different Hoist Motor for your choosing , LTD2.5, LTD6.3,LTD 8.0


    Hoist MotorPower and Voltage1.8KW*2, 380V-415V, 50HZ,3phase
    Drive disk Assembly material38CrMoA1A(Best materail)
    BearingImported from Japan

    4.Electrical Control box
    Installed with international and national famous brands electrical components, our electial control system consists of many protection devices, Such safety devices as electical leakage protection device ,automatic limited swith , creepage and overheat protection ,emergency brake ,current coverload proof,which make operate more easier ,safter and reliable .


    Control BoxContactorsSchneider Brand

    5. Safety Lock
    When the steel wire rope is broken ,blocked ,slip out of he hoist or the working platform inclines,the safey lock will lock the rope within 100mm, this safety device is high advanced in China now .


    Safety lock
    (anti-tilting type)
    Permission force of impact30KN
    Locking Cable Angle

    3°~8°
